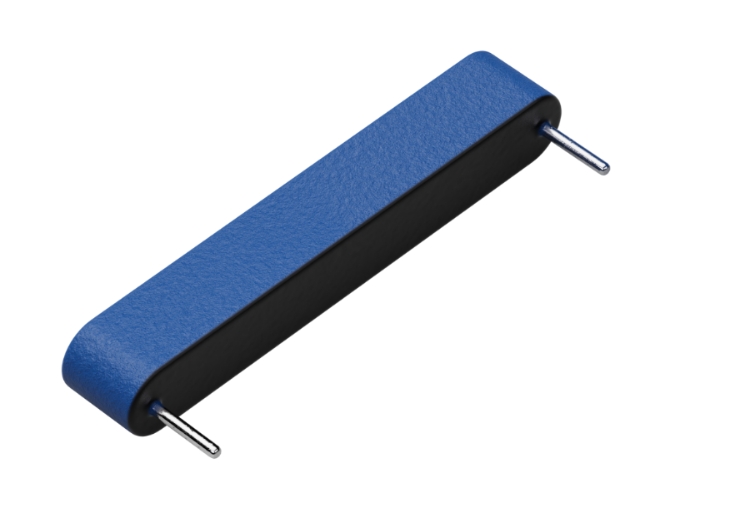

MMS-404 Series
Wired reed sensors for precise applications
Our MMS 404 series wired reed sensors allow for particularly easy integration into existing systems and are ideally suited for applications where a direct cable connection is preferred.
They offer reliable switching operations with minimal installation effort – ideal for position monitoring, limit detection, and control in machinery, drives, and building automation.
They offer reliable switching operations with minimal installation effort – ideal for position monitoring, limit detection, and control in machinery, drives, and building automation.
Do you require a customized solution?
Customizations:
• Dimensions and shape
• Magnetic sensitivity
• Operating temperature
• Connection types
• Housing material
• Mounting / Modification
Areas of application
Position control, non-contact switching
Features
Magnetically operated proximity sensor
Individually defined sensitivity
THT mounting for direct integration on printed circuit boards
Customized adjustments possible
Can be operated through non-ferrous materials, e.g., wood, plastic, or aluminum
Series characteristics
Series product information
A reed contact-based magnetic sensor with a normally open (NO) contact. The housing design allows for THT mounting. Available with various sensitivity options.
Dimensions: L 19.9 × W 2.8 mm
Contact form: Form A (Normally Open)
Operating temperature: –20°C … +80°C
Sensitivity: 7 … 25 AT
Switching capacity: 10 W
Switching current: 0.5 A
Carry current: 1.0 A
Dielectric strength: 250 V DC
Approval
REACH; RoHS

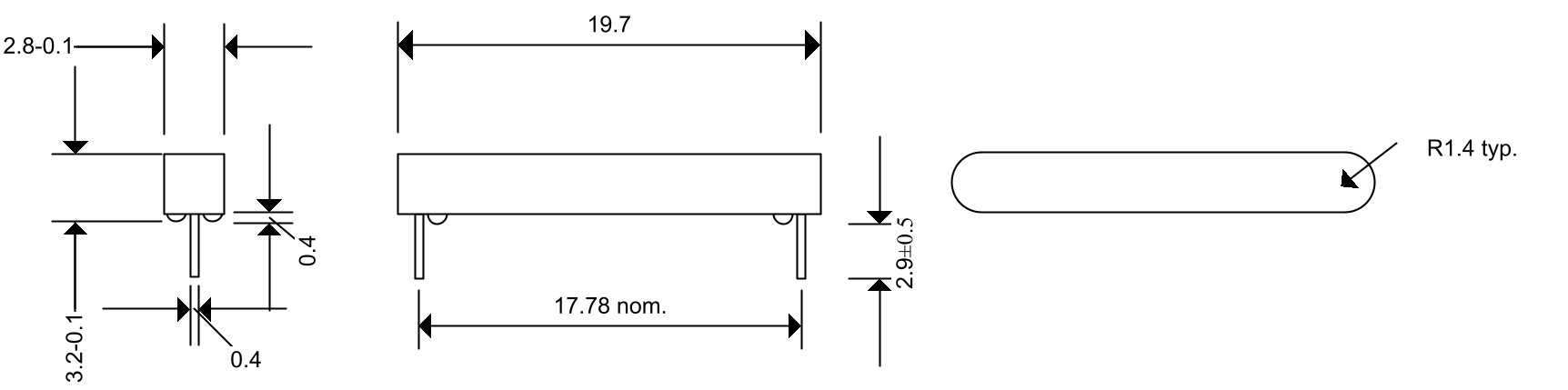

Technical drawing
Variant characteristics
Dimensions: L 19.9 × W 2.8 mm
Hole spacing: 17.78 mm
| MMS-404 -1 | ||||
|---|---|---|---|---|
 class="icon" alt="Form A-1">>
|
||||
| Contact form | Form A (NO) | |||
| Operating temperature | –20°C … +80°C | |||
| Sensitivity | 7 … 25 AT | |||
| Switching capacity | 10 W | |||
| Switching current | 0.5 A | |||
| Switching voltage VDC | 200 V DC | |||
| Switching voltage VAC | 140 V AC | |||
| Carry current | 1.0 A | |||
| Dielectric strength | 250 V DC | |||
| Small quantities & samples | Please inquire directly | |||
| MMS-404 -1 | - | - | - | |
|---|---|---|---|---|
|
class="icon" alt="Form A-1">>
|
||||
| Contact form | Form A (NO) | |||
| Operating temperature | –20°C … +80°C | |||
| Sensitivity | 7 … 25 AT | |||
| Switching capacity | 10 W | |||
| Switching current | 0.5 A | |||
| Switching voltage VDC | 200 V DC | |||
| Switching voltage VAC | 140 V AC | |||
| Carry current | 1.0 A | |||
| Dielectric strength | 250 V DC | |||
| Small quantities & samples | Please inquire directly | |||
◀ Please scroll table sideways ▶
