TMR Sensors – Flat Housing
Flat housing
MTM-102
Dimensions: L 23.0 × W 13.9 × H 5.9 mm
Operating temperature: –20 °C … +105 °C
TMR type: omnipolar / switch, bipolar / switch
Supply voltage: 1.8 V … 5.5 V
Flat housing

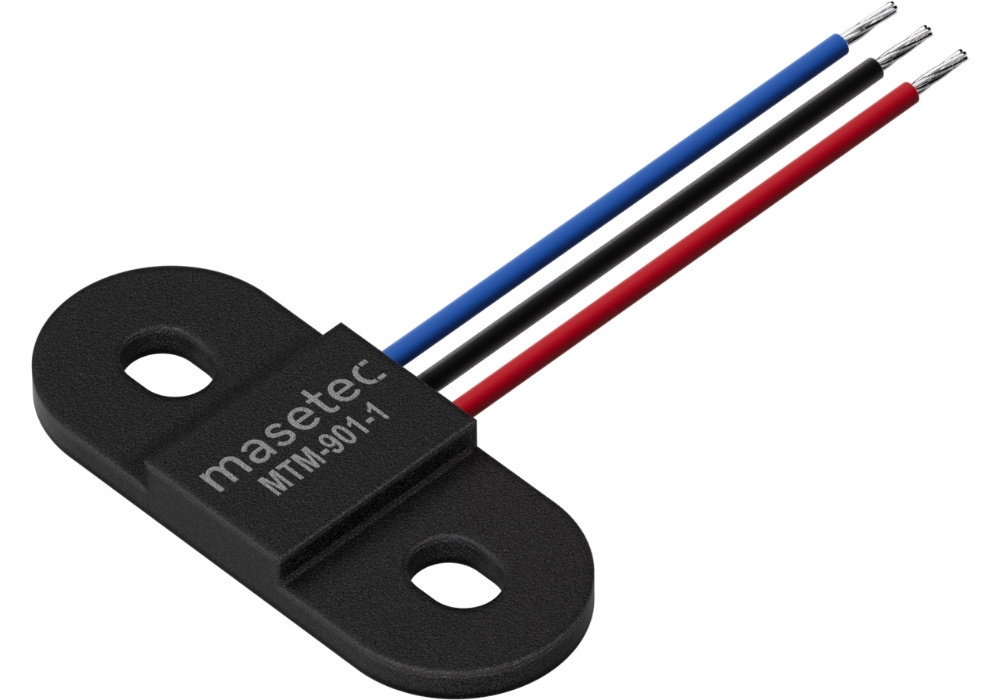

MTM-901
Dimensions: L 25.5 × W 11.0 × H 3.0 mm
Cable outlet: right
Operating temperature: –20 °C … +105 °C
TMR type: omnipolar / switch, bipolar / switch
Supply voltage: 1.8 V … 5.5 V
Areas of application
Position monitoring, contactless switching, speed measurement
All benefits at a glance
Available as standard and individually configurable:
Flexible use depending on specific requirements.
High-precision measurement:
Extremely sensitive and accurate in detecting magnetic fields.
Space-saving design:
Ultra-flat design for integration into compact and flat devices.
Low power consumption:
Efficient performance with minimal energy requirements, ideal for battery-powered applications.
Versatile application options:
Suitable for a wide range of applications, from position and speed sensing to current measurement.
High reliability:
Robust design for stable performance even under demanding conditions.
Fast response time:
Detects rapid changes in the magnetic field for real-time applications.
Long service life:
Long-lasting and reliable performance thanks to wear-free technology.
Easy integration:
Easy to integrate into existing systems thanks to a compact and standardized design.
Do you need a customized solution
for your product?
Sensitivity and measuring range
Operating temperature range
Specific magnetic properties
Housing material
Output signal
Connection types
Dimensions and shape
