MMA-203 Series
Compact Sensor Magnets in Cylindrical Housing
The MMA-203 series sensor magnets are robust and durable, specifically designed for clamp or plug-in mounting. They are ideal for use in industry, electronics, and automation, offering reliable magnetic force even under demanding conditions.
Their compact design and resilient PA66GF housing allow for easy integration and flexible adaptation.
Do you require a customized solution?
Individual Customizations:
• Housing shape
• Magnetic strength
• Material
• Housing shape
• Magnetic strength
• Material
Areas of application
Position control, speed measurement, level measurement
Features
Actuating magnet
Neodymium or Ferrite
Customized adjustments possible
Series characteristics
Product Information for the Series
A neodymium or ferrite-based activation magnet. The housing design allows for clamp or plug-in mounting. Available with various magnetic strengths and temperature resistances.
Operating temperature: –20 °C … +105 °C
Housing material: PA66GF
Magnet: NdFeB N35H / Ferrite Y35
Approval
REACH; RoHS

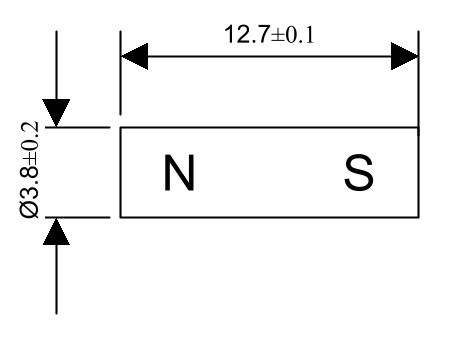

Technical drawing
Variant characteristics
| MMA‑203 -1 | MMA‑203 -2 | |||
|---|---|---|---|---|
| Dimensions | Ø 3.8 × L 12.7 mm | Ø 3.8 × L 12.8 mm | ||
| Temperature range | –20 °C … +105 °C | –20 °C … +105 °C | ||
| Material | PA66GF | PA66GF | ||
| Magnet type | NdFeB N35H | Ferrite Y35 | ||
| Mounting | Clamp or plug-in mounting | Clamp or plug-in mounting | ||
| Small Quantities & Samples |
 To the Shop
|
To the Shop
|
◀ Please scroll table sideways ▶
