MSC‑8MAS332B034RN series
Reliable M8 male sensor cables
The MSC‑8MAS332B034RN series sensor cables expand your automation system with a stable and durable connection solution. Specifically designed for industrial applications, they provide a secure connection to M8 sensors and ensure clean signal transmission – even in demanding environments.
Do you require a customized solution?
Individual adjustments:
• Insulation materials
• Shielding
• Jacket material
• Temperature range
• Cable material and construction
• Conductor cross-section and length
• Color coding and marking
• Connector and connection types
• Flexibility and bending radius
• Certifications and standards
Areas of application
Position control, speed measurement, level measurement, non-contact switching
Features
3-pin
M8x1 male sensor cable
straight version
0.34 mm²
PUR
Customer-specific adjustments possible
Series properties
Series product information
The M8 sensor cable is a robust, reliable connection solution for industrial applications. It is available in various lengths and versions and offers a high protection class, ideal for use in demanding environments.
Operating temperature: –25°C … +75°C
Material: PUR (cable) / Nylon66 (connector)
Protection class: IP67
Voltage / Current: 60V / 3A
Approval
REACH; RoHS

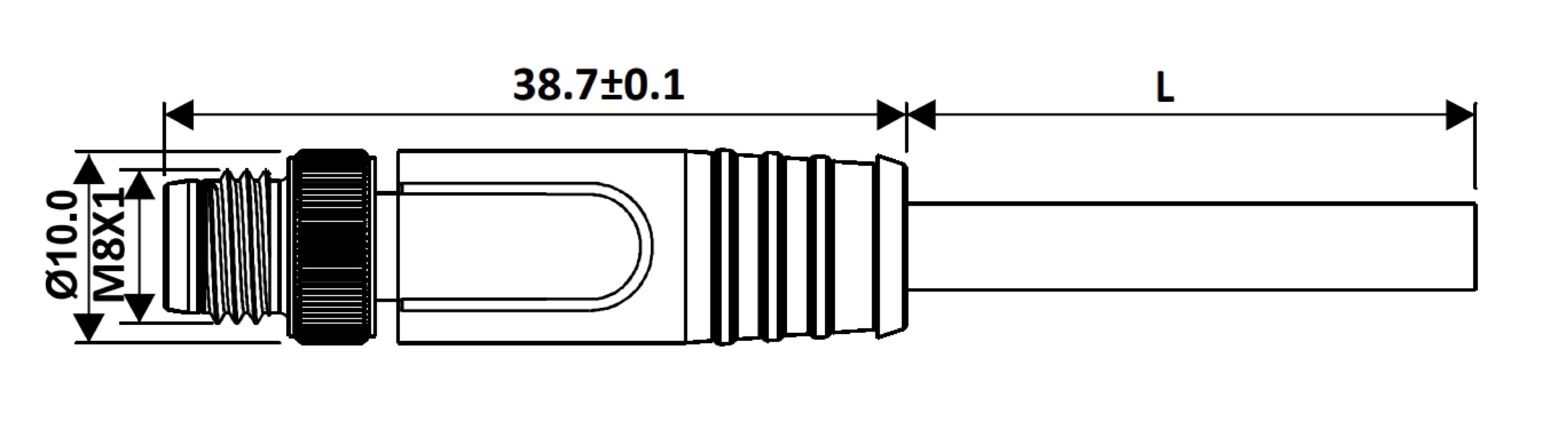

Technical drawing
Variant properties
Protection class: IP67
Cable length: 2.00 m
| MSC‑8MAS332B034RN | ||||
|---|---|---|---|---|
| Dimensions | Ø 10 × L 38.7 mm | |||
| Temperature range | –25°C … +75°C | |||
| Connector type | M8×1 male, straight version | |||
| Number of pins | 3 | |||
| Cable material | PUR | |||
| Connector material | Nylon66 | |||
| Cable cross-section | 0.34 mm² | |||
| Shielded | No | |||
| Current / Voltage | 3A / 60V | |||
| Coding | A | |||
| Small quantities & samples | Please inquire directly | |||
| Property | MSC‑8MAS332B034RN | – | – | – |
|---|---|---|---|---|
| Dimensions | Ø 10 × L 38.7 mm | |||
| Temperature range | –25°C … +75°C | |||
| Connector type | M8×1 male, straight version | |||
| Number of pins | 3 | |||
| Cable material | PUR | |||
| Connector material | Nylon66 | |||
| Cable cross-section | 0.34 mm² | |||
| Shielded | No | |||
| Current / Voltage | 3A / 60V | |||
| Coding | A | |||
| Small quantities & samples | Please inquire directly | |||
◀ Please scroll table sideways ▶
