MSC-8FAS332B034RN series
Reliable M8 sensor cables female (straight)
The MSC-8FAS332B034RN series sensor cables complement industrial sensor systems as a robust and durable connection solution. They are specifically designed for M8 sensors, ensuring secure signal transmission and seamless integration into existing automation environments—even in demanding areas of application.
Do you require a customized solution?
Individual adjustments:
• Insulation materials
• Shielding
• Jacket material
• Temperature range
• Conductor material and structure
• Conductor cross-section and length
• Color coding and marking
• Connector and connection types
• Flexibility and bending radius
• Certifications and standards
Areas of application
Position control, speed measurement, level measurement, non-contact switching
Features
3-pin
M8×1 female sensor cable
Straight version
0.34 mm²
PUR
Unshielded
Customized adjustments possible
Series characteristics
Series product information
The M8 sensor cable is a robust, reliable connection solution for industrial applications. It is available in various lengths and versions and offers a high protection class, ideal for use in demanding environments.
Material: PUR (cable) / Nylon66 (connector)
Protection class: IP67
Voltage / Current: 60 V / 3 A
Approval
REACH; RoHS

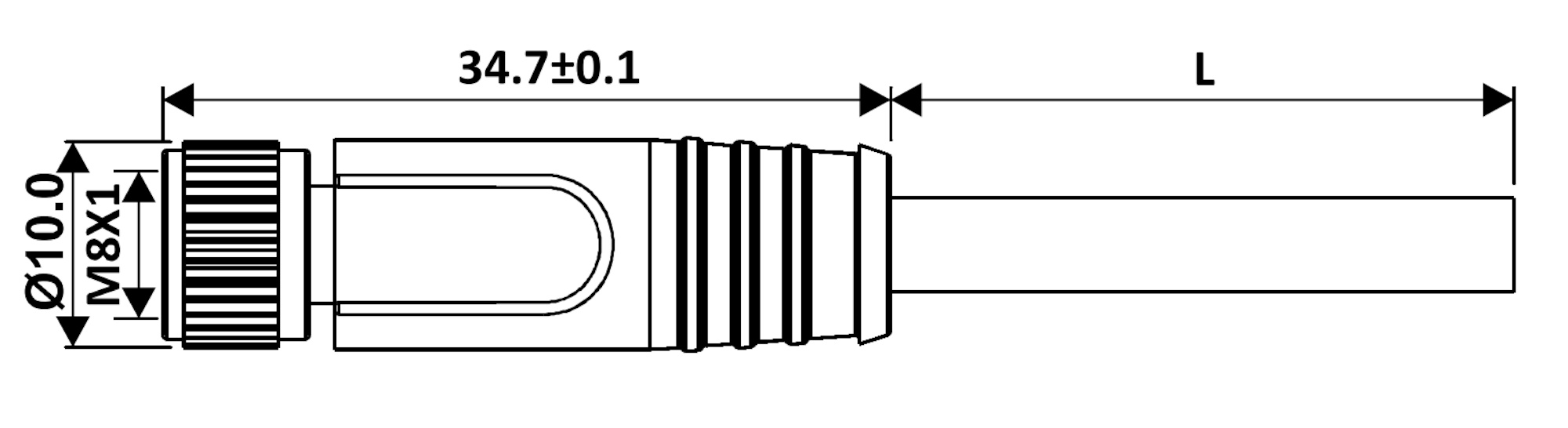

Technical drawing
Variant characteristics
Protection class: IP67
Cable length: 2.00 m
| MSC‑8FAS332B034RN | ||||
|---|---|---|---|---|
| Dimensions | Ø 10 × L 34.7 mm | |||
| Temperature range | –25 °C … +75 °C | |||
| Connector type | M8×1 female, straight version | |||
| Number of pins | 3 | |||
| Cable material | PUR | |||
| Connector material | Nylon66 | |||
| Cable cross-section | 0.34 mm² | |||
| Shielded | No | |||
| Current / Voltage | 3 A / 60 V | |||
| Coding | A | |||
| Small quantities & samples | Please inquire directly | |||
| MSC‑8FAS332B034RN | ||||
|---|---|---|---|---|
| Dimensions | Ø 10 × L 34.7 mm | |||
| Temperature range | –25 °C … +75 °C | |||
| Connector type | M8×1 female, straight version | |||
| Number of pins | 3 | |||
| Cable material | PUR | |||
| Connector material | Nylon66 | |||
| Cable cross-section | 0.34 mm² | |||
| Shielded | No | |||
| Current / Voltage | 3 A / 60 V | |||
| Coding | A | |||
| Small quantities & samples | Please inquire directly | |||
