Series MMS-225

Reed Sensors Cylindrical Housing MMS-225

Precision in Cylindrical Housing

Our MMS 225 series Reed sensors in cylindrical housing are ideally suited for industrial applications with round mounting holes, offering reliable switching operations with high positional accuracy and easy press-fit mounting.

Do you need a customized solution?

Custom adjustments:
• Dimensions and shape
• Magnetic sensitivity
• Operating temperature
• Connection types
• Housing material
• Mounting / Modification

Inquire now

Areas of application

Position control, non-contact switching

Features



Magnetically operated proximity sensor



Individually defined sensitivity



Press-fit mounting



Customized adjustments possible



Can be operated through non-ferrous materials, e.g., wood, plastic, or aluminum

Series characteristics

Product information for the series

Reed contact-based magnetic sensors of the MMS 225 series are manufactured as normally open, normally closed, or changeover contacts and are housed in a robust press-fit cylindrical casing. They can be clamped, plugged in, or directly pressed in and can be actuated through non-ferromagnetic materials. Various cable lengths, sensitivity ranges, and connection options allow for flexible adaptation; variants with low hysteresis and high-voltage versions cover demanding industrial applications.

Dimensions: Ø 10.7 × L 31 mm

Housing material: PBTGF

Contact form: A/B/C

Operating temperature: –20°C … +105°C

Sensitivity: 7 … 40 AT

Switching power: 5 W … 50 W

Switching current: 0.25 A … 1.0 A

Continuous current: 1.0 A … 3.0 A

Dielectric strength: 200 VDC … 2000 VDC

Approval

REACH; RoHS

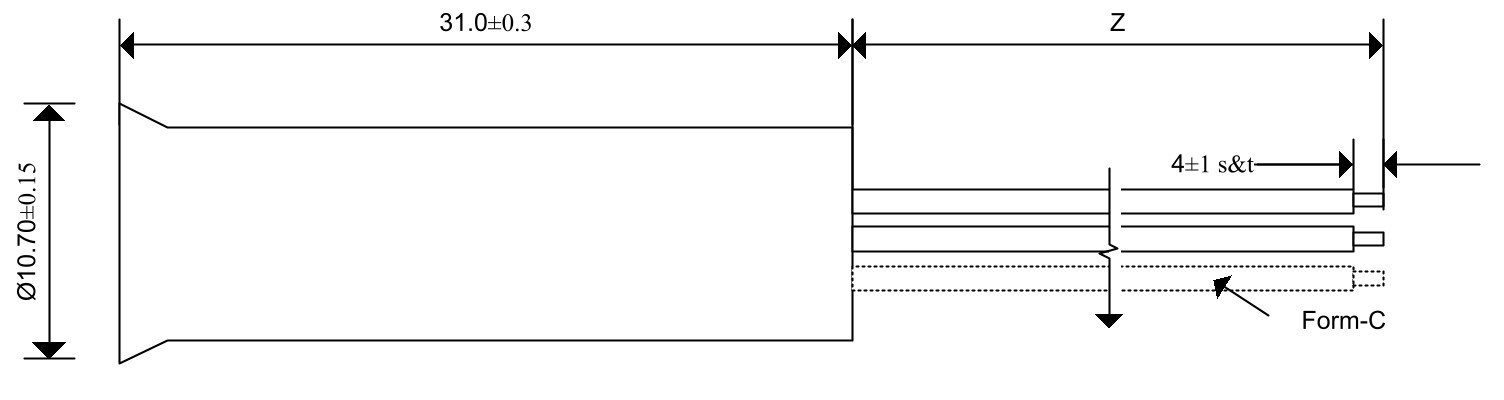

Technical drawing

Variant characteristics



Dimensions: Ø 10.7 × L 31 mm

	MMS-225 -1	MMS-225 -2	MMS-225 -3	MMS-225 -4	MMS-225 -5	MMS-225 -9	MMS-225 -10

Contact Form	A-Normally Open	A-Normally Open	A-Normally Open	B-Normally Closed	C-Changeover	A-Normally Open	A-Normally Open
Operating Temperature	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C
Sensitivity	7 … 30 AT	15 … 30 AT	15 … 40 AT	10 … 35 AT	10 … 35 AT	7 … 30 AT	15 … 35 AT
Switching Power	10 W	10 W	50 W	5 W	5 W	10 W	10 W
Switching Current	0.5 A	0.4 A	1.0 A	0.25 A	0.25 A	0.5 A	0.5 A
Switching Voltage VDC	200 VDC	200 VDC	250 VDC	175 VDC	175 VDC	200 VDC	1000 VDC
Switching Voltage VAC	140 VAC	265 VAC	265 VAC	125 VAC	125 VAC	140 VAC	265 VAC
Continuous Current	1.0 A	1.4 A	3.0 A	1.5 A	1.5 A	1.0 A	1.3 A
Dielectric Strength	250 VDC	400 VDC	750 VDC	200 VDC	200 VDC	200 VDC	2000 VDC
Small Quantities & Samples	Please inquire directly

	MMS-225 -1	MMS-225 -2	MMS-225 -3	MMS-225 -4	MMS-225 -5	MMS-225 -9	MMS-225 -10

Kontaktform	A-Schließer	A-Schließer	A-Schließer	B-Öffner	C-Umschalter	A-Schließer	A-Schließer
Arbeitstemperatur	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C
Empfindlichkeit	7 … 30 AT	15 … 30 AT	15 … 40 AT	10 … 35 AT	10 … 35 AT	7 … 30 AT	15 … 35 AT
Schaltleistung	10 W	10 W	50 W	5 W	5 W	10 W	10 W
Schaltstrom	0.5 A	0.4 A	1.0 A	0.25 A	0.25 A	0.5 A	0.5 A
Schaltspannung VDC	200 VDC	200 VDC	250 VDC	175 VDC	175 VDC	200 VDC	1000 VDC
Schaltspannung VAC	140 VAC	265 VAC	265 VAC	125 VAC	125 VAC	140 VAC	265 VAC
Dauerstrom	1.0 A	1.4 A	3.0 A	1.5 A	1.5 A	1.0 A	1.3 A
Spannungsfestigkeit	250 VDC	400 VDC	750 VDC	200 VDC	200 VDC	200 VDC	2000 VDC
Kleinmengen & Muster	Bitte direkt anfragen
