Series MMS-401
Wired reed sensors for precise applications
Our wired reed sensors of the MMS 401 series enable particularly simple integration into existing systems and are ideally suited for applications where a direct cable connection is preferred. They offer reliable switching operations with minimal installation effort—ideal for position monitoring, end position detection, and control in machines, drives, and building automation.
Do you need a customized solution?
Individual customizations:
• Dimensions and shape
• Magnetic sensitivity
• Operating temperature
• Connection types
• Housing material
• Assembly / modification
Areas of application
Position control, non-contact switching
Features
Magnetically operated proximity sensor
Individually defined sensitivity
THT mounting for direct integration on printed circuit boards
Customized adjustments possible
Can be operated through non-ferrous materials, e.g., wood, plastic, or aluminum
Series characteristics
Product information of the series

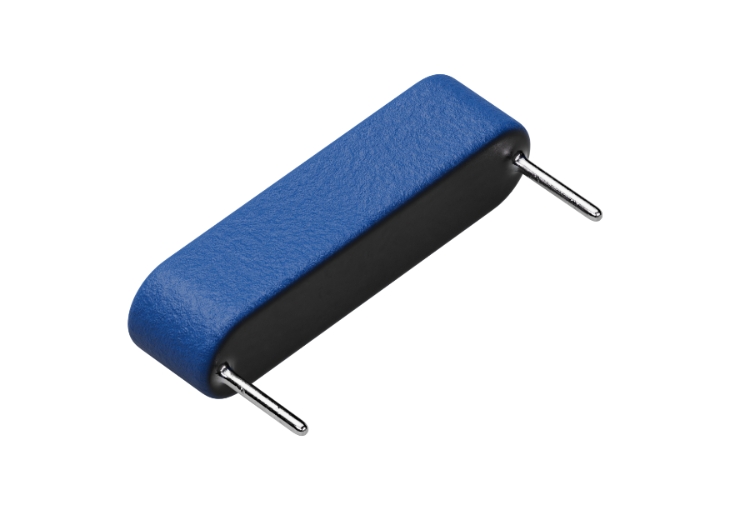

A reed contact-based magnetic sensor with a normally open contact. The housing design enables THT mounting. Available with different sensitivity options.
Dimensions: L 11.4 × W 2.7 mm
Contact form: Form A (normally open)
Operating temperature: –20°C … +80°C
Sensitivity: 7 … 20 AT
Switching power: 10 W
Switching current: 0.25 A
Continuous current: 0.5 A
Dielectric strength: 150 VDC
Approval
REACH; RoHS

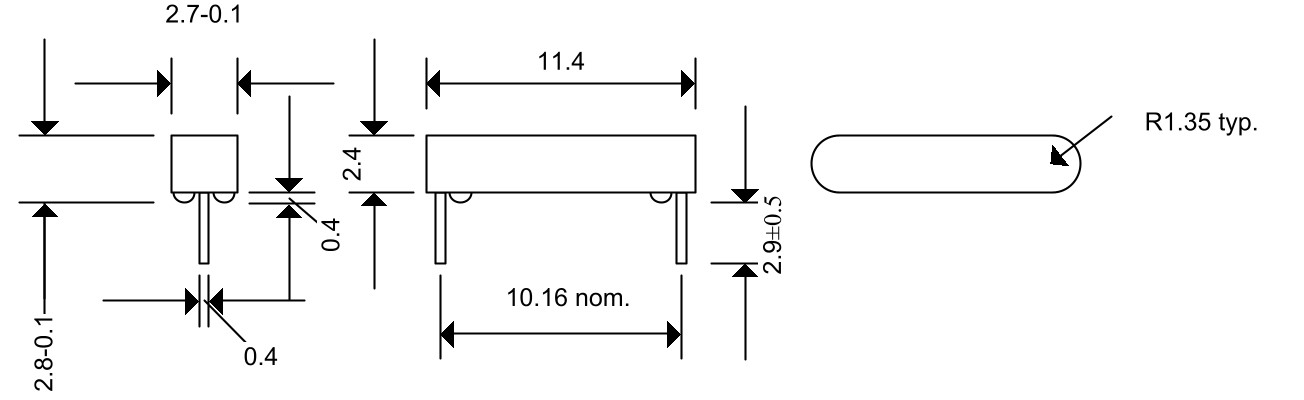

Technical drawing
Variant characteristics
Dimensions: L 11.4 × W 2.7 mm
Hole spacing: 10.16 mm
| MMS-401 -1 | ||||
|---|---|---|---|---|
 class="icon" alt="Form A-1">
|
||||
| Contact form | Form A (normally open) | |||
| Operating temperature | –20°C … +80°C | |||
| Sensitivity | 7 … 20 AT | |||
| Switching power | 10 W | |||
| Switching current | 0.25 A | |||
| Switching voltage VDC | 170 VDC | |||
| Switching voltage VAC | 120 VAC | |||
| Continuous current | 0.5 A | |||
| Dielectric strength | 150 VDC | |||
| Small quantities & samples |
To shop
|
| MMS-401 -1 | - | - | - | |
|---|---|---|---|---|
|
class="icon" alt="Form A-1">
|
||||
| Contact form | Form A (normally open) | |||
| Operating temperature | –20°C … +80°C | |||
| Sensitivity | 7 … 20 AT | |||
| Switching power | 10 W | |||
| Switching current | 0.25 A | |||
| Switching voltage VDC | 170 VDC | |||
| Switching voltage VAC | 120 VAC | |||
| Continuous current | 0.5 A | |||
| Dielectric strength | 150 VDC | |||
| Small quantities & samples |
To shop
|
◀ Please scroll table sideways ▶
