Reed Sensors in Threaded Housings
Our reed sensors in threaded housings combine simple installation with high precision and are ideal for applications in demanding environments. Typical areas of application include position detection in cylinders, door and flap monitoring, as well as automation in conveyor technology.
Threaded Housing

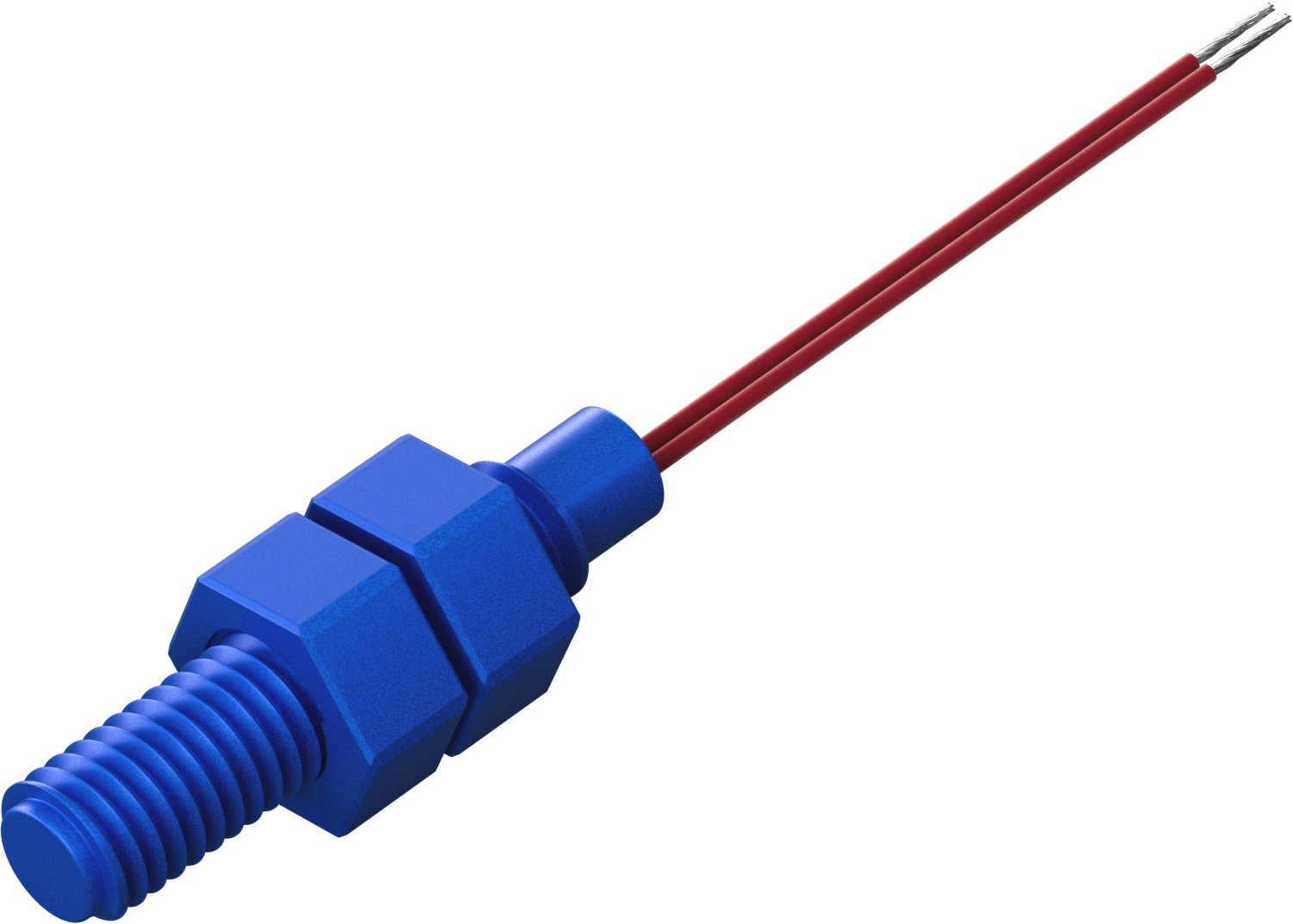

MMS-302
Dimensions: M8 × L 38.10 mm
Contact Form: A/B/C
Operating Temperature: –20°C … +105°C
Pitch: 1.25
Switching Power: 5 W to 50 W
Threaded Housing

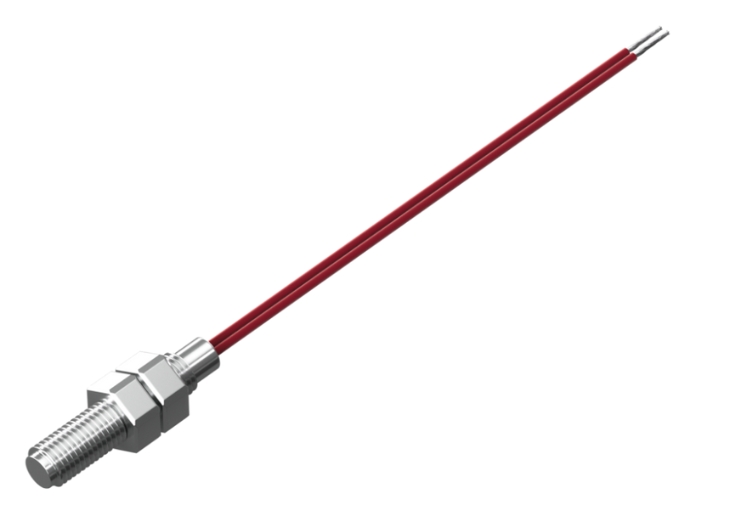

MMS-303
Dimensions: M5 × L 24.9 mm
Contact Form: Form A (NO)
Operating Temperature: –20°C … +80°C
Pitch: 0.5
Switching Power: 10 W
Threaded Housing

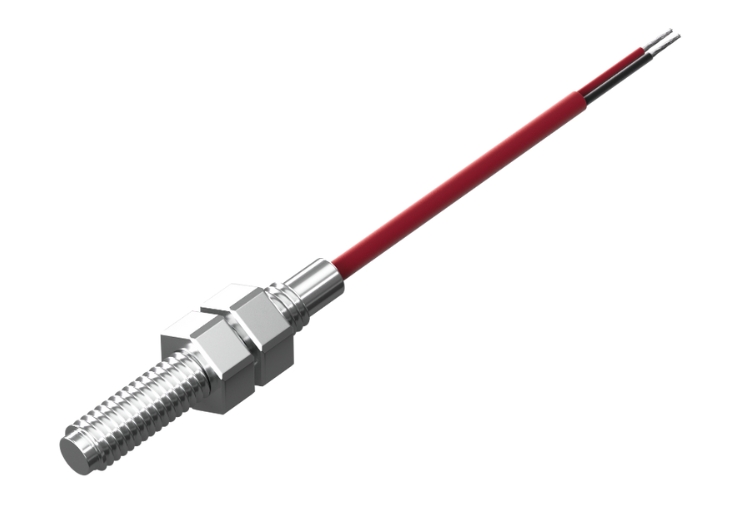

MMS-304
Dimensions: M6 × L 38.0 mm
Contact Form: Form A (NO)
Operating Temperature: –20°C … +80°C
Pitch: 1
Switching Power: 10 W
Threaded Housing

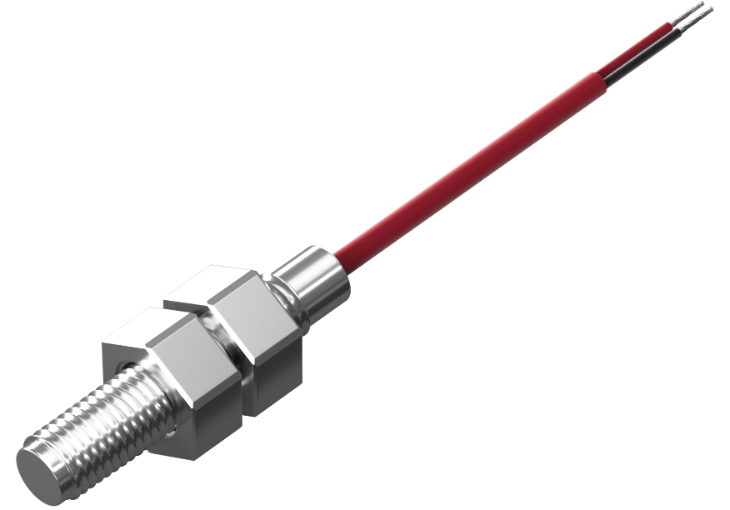

MMS-305
Dimensions: M8 × L 38.0 mm
Contact Form: A/B/C
Operating Temperature: –20°C … +80°C
Pitch: 1.25
Switching Power: 5 W to 50 W
Threaded Housing

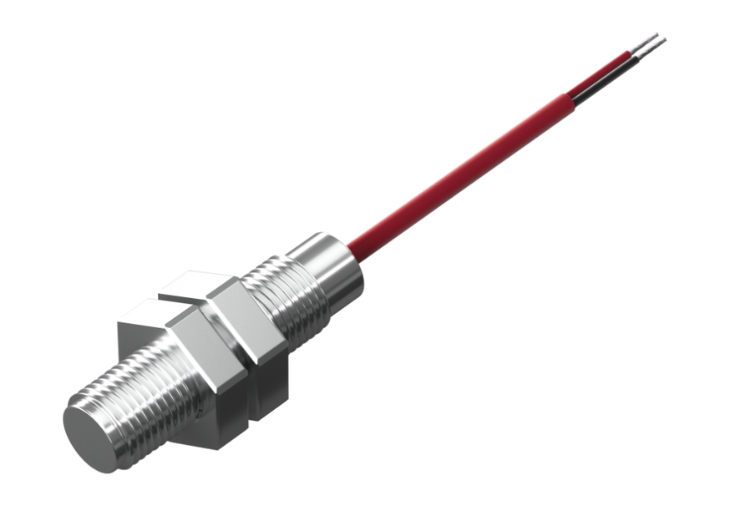

MMS-306
Dimensions: M8 × L 38.0 mm
Contact Form: A/B/C
Operating Temperature: –20°C … +80°C
Pitch: 1
Switching Power: 5 W to 50 W
Threaded Housing

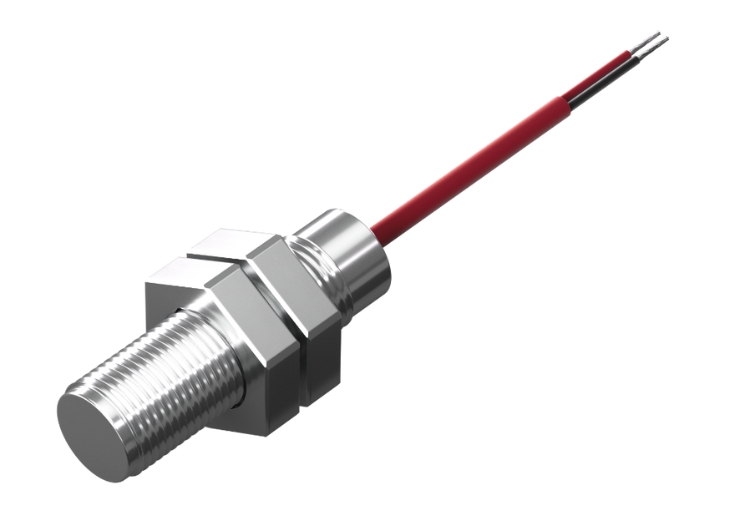

MMS-307
Dimensions: M12 × L 38.0 mm
Contact Form: A/B/C
Operating Temperature: –20°C … +80°C
Pitch: 1
Switching Power: 5 W to 50 W
Threaded Housing

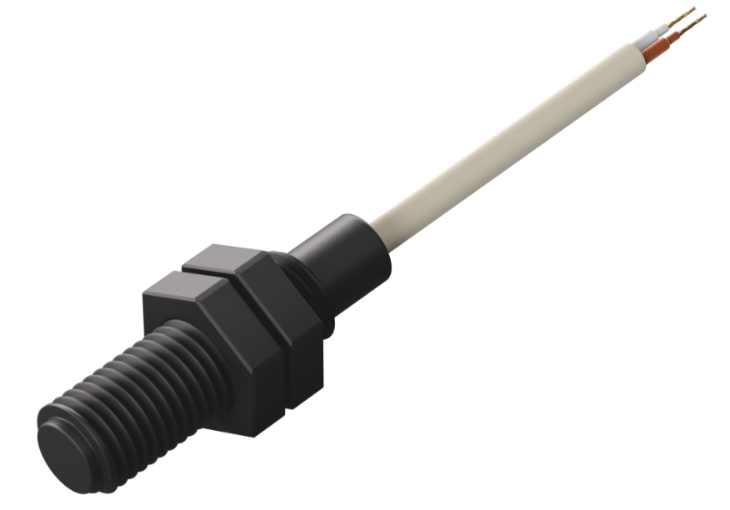

MMS-308
Dimensions: M12 × L 46.0 mm
Contact Form: A/B/C
Operating Temperature: –20°C … +80°C
Pitch: 1.5
Switching Power: 5 W to 50 W
Threaded Housing

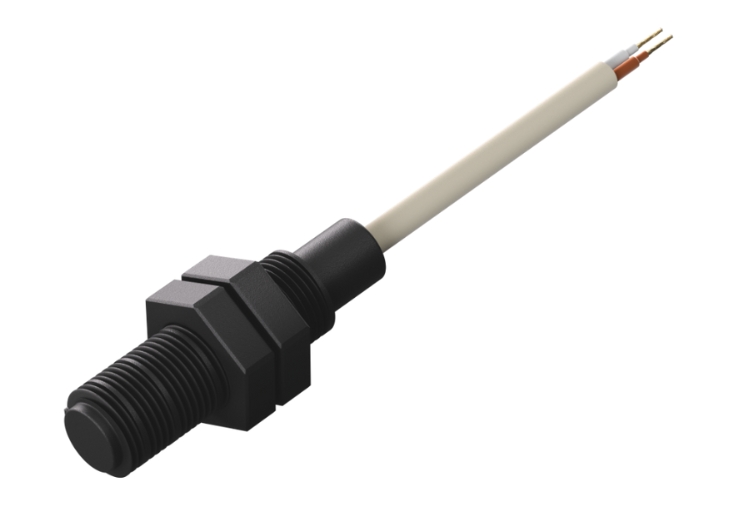

MMS-309
Dimensions: M12 × L 46.0 mm
Contact Form: A/B/C
Operating Temperature: –20°C … +80°C
Pitch: 1
Switching Power: 5 W to 50 W
Areas of application
Position Control, Contactless Switching
All Advantages at a Glance
Available as standard and individually configurable:
Flexible deployment according to specific requirements.
Simple Installation:
Fast and secure mounting through the thread.
Precise Positioning:
Thread enables precise sensor placement.
Robust Fastening:
Stable and vibration-resistant, ideal for demanding environments.
Versatility:
Available in various thread sizes and types.
Water Resistance and Protection:
Resistant to water, dust, and environmental influences.
High Reliability:
Secure mounting ensures reliable function.
Compact Design:
Despite the threaded housing, the sensor remains space-saving.
Do you need a customized solution
for your product?
Dimensions and Shape
Mounting / Modification
Magnetic Sensitivity
Operating Temperature
Connection Types
Housing Material
