MMS-113 Series

Precision in a Flat Housing

Our MMS 113 series flat housing reed sensors offer a reliable solution for space-saving applications and ensure precise results in demanding environments.

Do you require a customized solution?

Customization options:
• Dimensions and shape
• Magnetic sensitivity
• Operating temperature
• Connection types
• Housing material
• Mounting / Modification

Inquire now

Areas of application

Position Control, Contactless Switching

Features



Magnetically operated proximity sensor



Individually defined sensitivity



Screw mounting



Customized adjustments possible



Can be operated through non-ferrous materials, e.g., wood, plastic, or aluminum

Series characteristics

Product Information for the Series

A reed contact-based magnetic sensor in a compact flat housing, optionally available with normally open, normally closed, or changeover contacts.
The housing can be screwed or glued and is available with various cable lengths, sensitivity levels, and connector types. The sensor can be activated through non-ferrous materials such as wood, plastic, or aluminum, offers flexible customized adaptations, and is ideal for position control and other non-contact switching applications.

Dimensions: L 32 × W 10 × H 6.2 mm

Cable exit: right

Contact form: A/B/C

Operating temperature: –20 °C … +105 °C

Sensitivity: 7 … 40

Switching power: 5 W … 50 W

Switching current: 0.25 A … 1.0 A

Carry current: 1.0 A … 3.0 A

Dielectric strength: 200 VDC … 2000 VDC

Approval

REACH; RoHS

Download datasheet

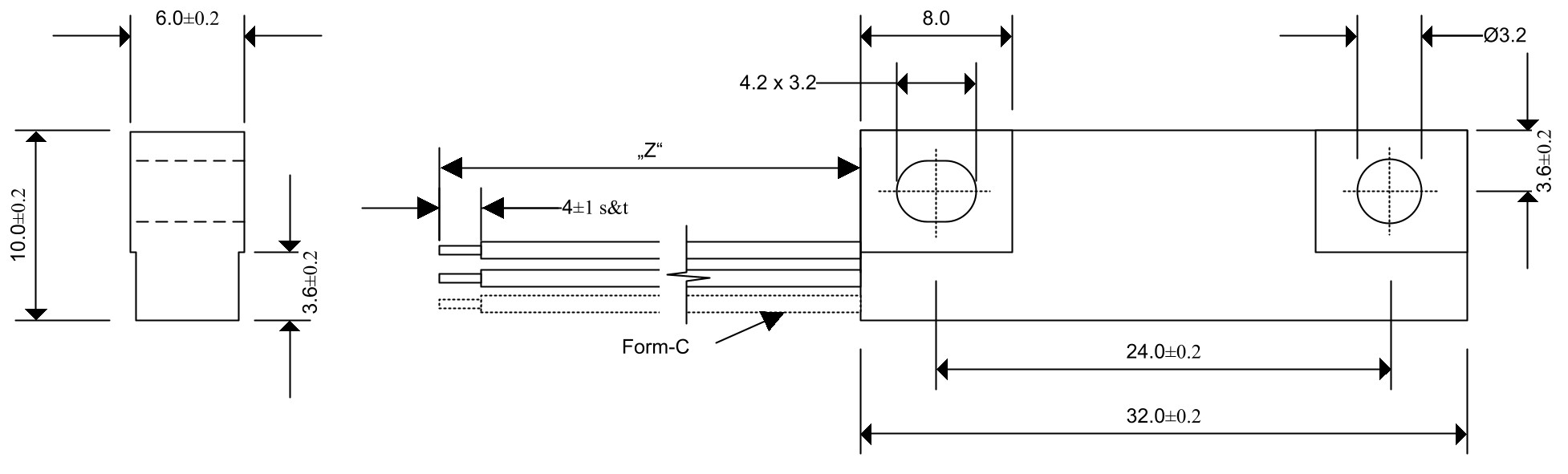

Technical drawing

Variant characteristics



Dimensions: L 32 × W 10 × H 6.2 mm



Cable exit: right

	MMS-113 -1	MMS-113 -2	MMS-113 -3	MMS-113 -4	MMS-113 -5	MMS-113 -9	MMS-113 -10

Contact Form	A-Normally Open	A-Normally Open	A-Normally Open	B-Normally Closed	C-Changeover	A-Normally Open	A-Normally Open
Operating Temperature	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C
Sensitivity	7 … 30 AT	15 … 30 AT	15 … 40 AT	10 … 35 AT	10 … 35 AT	7 … 30 AT	15 … 35 AT
Switching Power	10 W	10 W	50 W	5 W	5 W	10 W	10 W
Switching Current	1.0 A	0.4 A	1.0 A	0.25 A	0.25 A	0.5 A	0.5 A
Switching Voltage VDC	200 VDC	200 VDC	250 VDC	175 VDC	175 VDC	200 VDC	1000 VDC
Switching Voltage VAC	140 VAC	265 VAC	265 VAC	125 VAC	125 VAC	140 VAC	265 VAC
Carry Current	1.0 A	1.4 A	3.0 A	1.5 A	1.5 A	1.0 A	1.3 A
Dielectric Strength	250 VDC	400 VDC	750 VDC	200 VDC	200 VDC	200 VDC	2000 VDC
Small quantities & samples	Please inquire directly

	MMS-113 -1	MMS-113 -2	MMS-113 -3	MMS-113 -4	MMS-113 -5	MMS-113 -9	MMS-113 -10

Contact Form	A-Normally Open	A-Normally Open	A-Normally Open	B-Normally Closed	C-Changeover	A-Normally Open	A-Normally Open
Operating Temperature	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C
Sensitivity	7 … 30 AT	15 … 30 AT	15 … 40 AT	10 … 35 AT	10 … 35 AT	7 … 30 AT	15 … 35 AT
Switching Power	10 W	10 W	50 W	5 W	5 W	10 W	10 W
Switching Current	1.0 A	0.4 A	1.0 A	0.25 A	0.25 A	0.5 A	0.5 A
Switching Voltage VDC	200 VDC	200 VDC	250 VDC	175 VDC	175 VDC	200 VDC	1000 VDC
Switching Voltage VAC	140 VAC	265 VAC	265 VAC	125 VAC	125 VAC	140 VAC	265 VAC
Carry Current	1.0 A	1.4 A	3.0 A	1.5 A	1.5 A	1.0 A	1.3 A
Dielectric Strength	250 VDC	400 VDC	750 VDC	200 VDC	200 VDC	200 VDC	2000 VDC
Small quantities & samples	Please inquire directly
