Series MMS-229

Reed-Sensors-Cylindrical-Housing-MMS-229

Precision in Cylindrical Housing

Our reed sensors in cylindrical housing of the MMS 229 series are ideally suited for industrial applications with round mounting bores and offer reliable switching operations with high positional accuracy and easy installation.

Do You Need a Custom Solution?

Custom Adaptations:
• Dimensions and shape
• Magnetic sensitivity
• Operating temperature
• Connection types
• Housing material
• Assembly / modification

Inquire now

Areas of application

Position Control, Contactless Switching

Features



Magnetically operated proximity sensor



Individually defined sensitivity



Customized adjustments possible



Can be operated through non-ferrous materials, e.g., wood, plastic, or aluminum

Series characteristics

Product Information for the Series

A reed contact-based magnetic sensor with a normally open contact. The housing is designed for clamp or plug-in mounting and can be supplied with different cable lengths, sensitivity levels, and connector options.

Dimensions: Ø 3 × L 15 mm

Housing material: PP

Contact form: Form A normally open

Operating temperature: –20°C … +80°C

Sensitivity: 6 … 40 AT

Switching power: 1 W

Switching current: 0.1 A

Continuous current: 0.3 A

Voltage rating: 150 VDC

Approval

REACH; RoHS

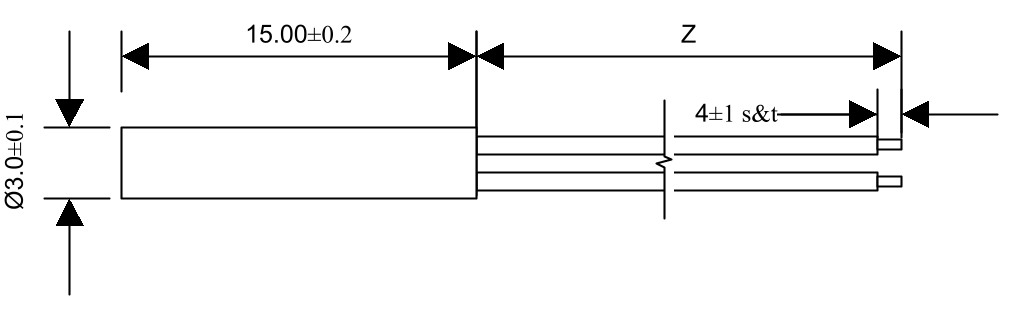

Technical drawing

Variant characteristics



Dimensions: Ø 3 × L 15 mm

	MMS-229 -1

Contact form	Form A normally open
Operating temperature	–20°C … +80°C
Sensitivity	6 … 40 AT
Switching power	1 W
Switching current	0.1 A
Switching voltage VDC	24 VDC
Switching voltage VAC	24 VAC
Continuous current	0.3 A
Voltage rating	150 VDC
Small quantities & samples	Please inquire directly

	MMS-229 -1
	class="icon" alt="Form A-1">
Contact form	Form A normally open
Operating temperature	–20°C … +80°C
Sensitivity	6 … 40 AT
Switching power	1 W
Switching current	0.1 A
Switching voltage VDC	24 VDC
Switching voltage VAC	24 VAC
Continuous current	0.3 A
Voltage rating	150 VDC
Small quantities & samples	Please inquire directly
