Series MMS-210

Precision in a cylindrical housing

Our reed sensors in the cylindrical housing of the MMS 210 series are ideally suited for industrial applications with round mounting bores and provide reliable switching operations with high positioning accuracy and easy installation.

Do you need a custom solution?

Custom adaptations:
• Dimensions and shape
• Magnetic sensitivity
• Operating temperature
• Connection types
• Housing material
• Mounting / modification

Inquire now

Areas of application

Position control, non-contact switching

Features



Magnetically operated proximity sensor



Individually defined sensitivity



Customized adjustments possible



Can be operated through non-ferrous materials, e.g. wood, plastic or aluminium

Series characteristics

Product information for the series

Reed contact-based magnetic sensors in a slim cylindrical housing for screw or adhesive mounting. The series offers normally open, normally closed and changeover contacts (including a variant with low hysteresis) and can be flexibly adapted to the respective application thanks to various cable lengths, sensitivity levels and connection options.

Dimensions: Ø 5.6 × L 25.2 mm

Housing material: PA66GF

Contact type: A/B/C

Operating temperature: –20°C … +105°C

Sensitivity: 7 … 35 AT

Switching power: 5 W … 10 W

Switching current: 0.25 A … 0.5 A

Continuous current: 1.0 A … 1.5 A

Dielectric strength: 200 VDC … 400 VDC

Approval

REACH; RoHS

Download datasheet

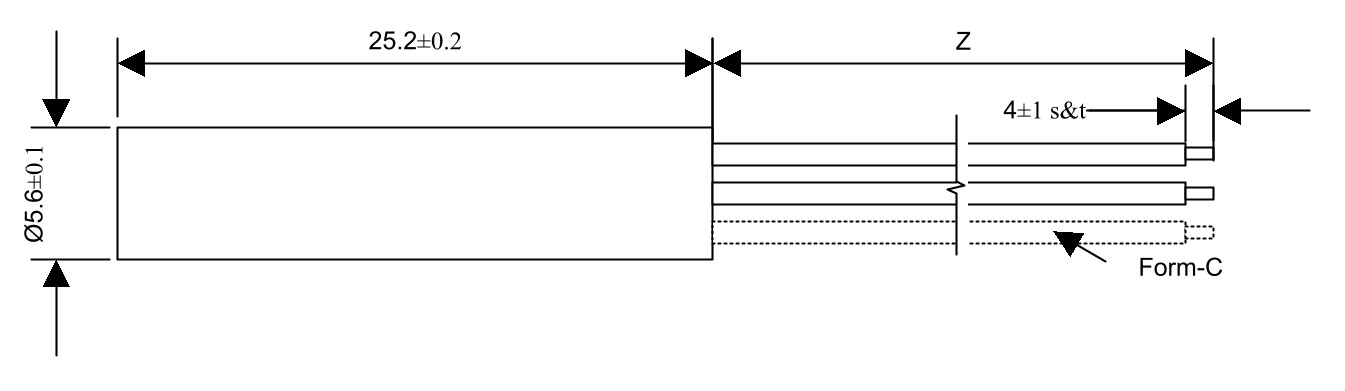

Technical drawing

Variant characteristics



Dimensions: Ø 5.6 × L 25.2 mm

	MMS-210 -1	MMS-210 -2	MMS-210 -4	MMS-210 -5	MMS-210 -9

Kontaktform	A-Schließer	A-Schließer	B-Öffner	C-Umschalter	A-Schließer
Arbeitstemperatur	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C
Empfindlichkeit	7 … 30 AT	15 … 30 AT	10 … 35 AT	10 … 35 AT	7 … 30 AT
Schaltleistung	10 W	10 W	5 W	5 W	10 W
Schaltstrom	0.5 A	0.4 A	0.25 A	0.25 A	0.5 A
Schaltspannung VDC	200 VDC	200 VDC	175 VDC	175 VDC	200 VDC
Schaltspannung VAC	140 VAC	265 VAC	125 VAC	125 VAC	140 VAC
Dauerstrom	1.0 A	1.4 A	1.5 A	1.5 A	1.0 A
Spannungsfestigkeit	250 VDC	400 VDC	200 VDC	200 VDC	200 VDC
Kleinmengen & Muster	ZUM SHOP		ZUM SHOP	ZUM SHOP

	MMS-210 -1	MMS-210 -2	MMS-210 -4	MMS-210 -5	MMS-210 -9

Kontaktform	A-Schließer	A-Schließer	B-Öffner	C-Umschalter	A-Schließer
Arbeitstemperatur	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C
Empfindlichkeit	7 … 30 AT	15 … 30 AT	10 … 35 AT	10 … 35 AT	7 … 30 AT
Schaltleistung	10 W	10 W	5 W	5 W	10 W
Schaltstrom	0.5 A	0.4 A	0.25 A	0.25 A	0.5 A
Spannungsfestigkeit	250 VDC	400 VDC	200 VDC	200 VDC	200 VDC
Schaltspannung VAC	140 VAC	265 VAC	125 VAC	125 VAC	140 VAC
Dauerstrom	1.0 A	1.4 A	1.5 A	1.5 A	1.0 A
