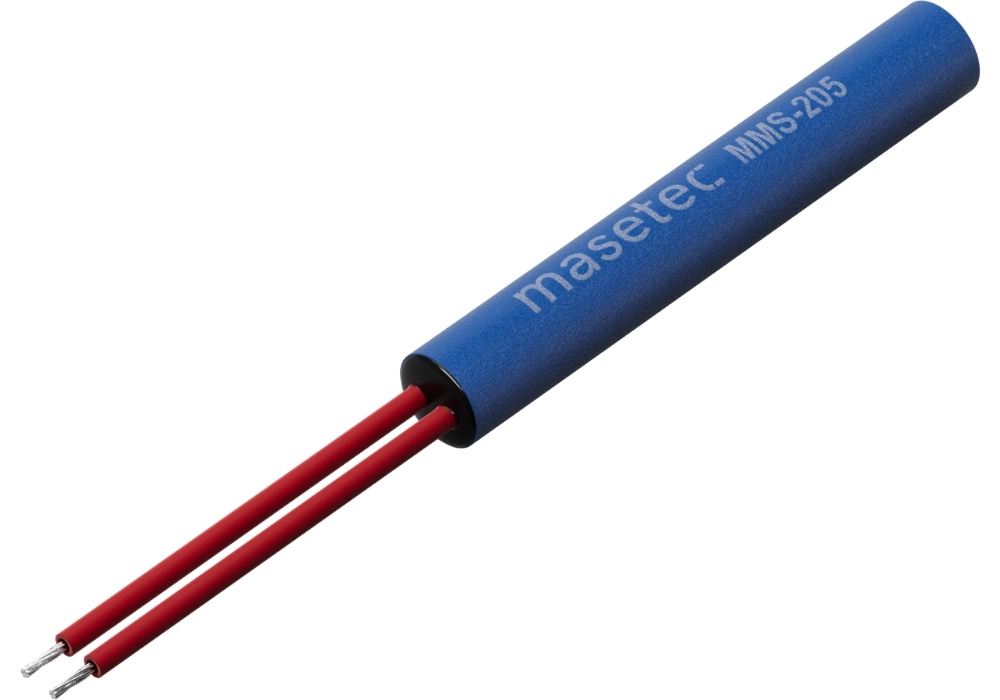

MMS-205 Series

Precision in a Cylindrical Housing

Our MMS 205 series reed sensors in cylindrical housings are ideal for industrial applications with round mounting holes, offering reliable switching operations with high positioning accuracy and easy installation.

Do you require a customized solution?

Customized adjustments:
• Dimensions and shape
• Magnetic sensitivity
• Operating temperature
• Connection types
• Housing material
• Mounting / Modification

Inquire now

Areas of application

Position control, non-contact switching

Features



Magnetically operated proximity sensor



Individually defined sensitivity



Customized adjustments possible



Can be operated through non-ferrous materials, e.g., wood, plastic, or aluminum

Series characteristics

Series product information

Reed-contact-based magnetic sensors in a slim cylindrical housing, available with normally open, normally closed, or changeover contacts. They can be fixed via clamp or plug-in mounting, switch reliably through non-ferromagnetic materials, and can be precisely adapted to customer-specific applications thanks to variable cable lengths, sensitivity levels, and connection options.

Dimensions: Ø 6.0 × L 40.1 mm

Housing material: PA66GF

Contact form: A/B/C

Operating temperature: –20°C … +105°C

Sensitivity: 7 … 40 AT

Switching capacity: 5 W … 10 W

Switching current: 0.25 A … 1.0 A

Carry current: 1.0 A … 3.0 A

Dielectric strength: 200 VDC … 2000 VDC

Approval

REACH; RoHS

Download datasheet

Technical drawing

Variant characteristics



Dimensions: Ø 6.0 × L 40.1 mm

	MMS-205 -1	MMS-205 -2	MMS-205 -4	MMS-205 -5	MMS-205 -9

Contact form	A-Normally Open	A-Normally Open	B-Normally Closed	C-Changeover	A-Normally Open
Operating temperature	–20°C … +105°C	–20°C … +105°C	–20°C … +105°C	–20°C … +105°C	–20°C … +105°C
Sensitivity	7 … 25 AT	15 … 25 AT	10 … 30 AT	10 … 30 AT	7 … 25 AT
Switching capacity	10 W	10 W	5 W	5 W	10 W
Switching current	0.5 A	0.4 A	0.25 A	0.25 A	0.5 A
Switching voltage VDC	200 VDC	200 VDC	175 VDC	175 VDC	200 VDC
Switching voltage VAC	140 VAC	265 VAC	125 VAC	125 VAC	140 VAC
Carry current	1.0 A	1.4 A	1.5 A	1.5 A	1.0 A
Dielectric strength	250 VDC	400 VDC	200 VDC	200 VDC	200 VDC
Small quantities & samples	To the Shop		To the Shop	To the Shop

	MMS-205 -1	MMS-205 -2	MMS-205 -3	MMS-205 -4	MMS-205 -5	MMS-205 -9

Kontaktform	A-Schließer	A-Schließer	A-Schließer	B-Öffner	C-Umschalter	A-Schließer
Arbeitstemperatur	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C
Empfindlichkeit	7 … 30 AT	15 … 30 AT	10 … 35 AT	10 … 35 AT	7 … 30 AT
Schaltleistung	10 W	10 W	50 W	5 W	5 W	10 W
Schaltstrom	0.5 A	0.4 A	1.0 A	0.25 A	0.25 A	0.5 A
Spannungsfestigkeit	250 VDC	400 VDC	750 VDC	200 VDC	200 VDC	200 VDC
Schaltspannung VAC	140 VAC	265 VAC	265 VAC	125 VAC	125 VAC	140 VAC
Dauerstrom	1.0 A	1.4 A	3.0 A	1.5 A	1.5 A	1.0 A
Kleinmengen & Muster	Zum Shop		Zum Shop	Zum Shop	Zum Shop	Zum Shop
