MTM-901 Series

Precision in a Flat Package

Our MTM 901 series flat package TMR sensors enable high-precision, non-contact magnetic field measurements in a particularly flat design. They are characterized by extremely high sensitivity, low power consumption, and a long service life. Ideal for applications with minimal installation space, they impress with their robust construction, reliable performance, and easy integration – even under demanding conditions.

Do you need a customized solution?

Individual adjustments:
• Sensitivity and measuring range
• Operating temperature range
• Specific magnetic properties
• Flexibility and bending radius
• Connection types
• Output signal
• Dimensions and shape

Inquire now

Areas of application

Position control, Non-contact switching, Speed measurement

Features



Magnetically operated proximity sensor TMR technology



Individually defined sensitivity



Screw mounting



Customized adjustments possible



Can be operated through non-ferrous materials, e.g., wood or plastic

Series characteristics

Product information for the series

A TMR IC-based magnetic sensor with a selection of normally open contacts. The flat housing design allows for screw or clamp mounting. Available with different cable lengths, sensitivity, and connector options.

Dimensions: L 25.5 × W 11.0 × H 3.0 mm

Cable outlet: right

Operating temperature: –20°C … +105°C

Supply voltage: 1.8 V … 5.5 V

TMR type: Omnipolar / Switch · Bipolar / Switch

Sensitivity: 5 … 35 Gs

Material: PBTGF

Cable type: UL1569

Approval

REACH; RoHS

Download datasheet

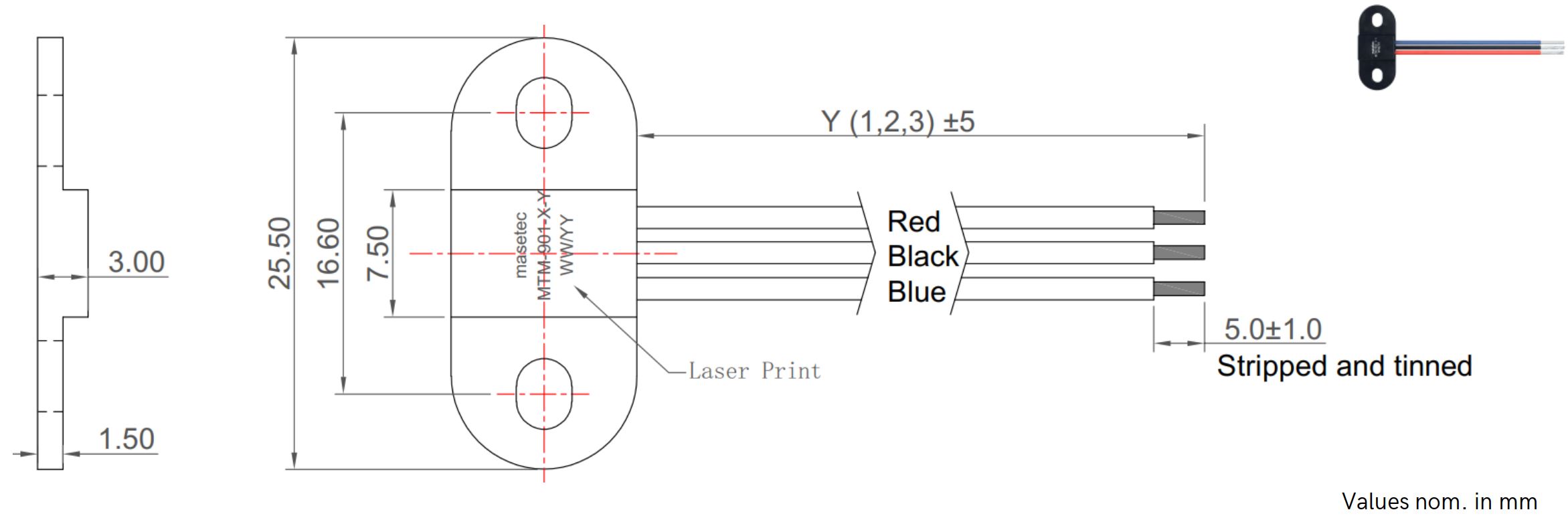

Technical drawing

Variant characteristics



Dimensions: L 25.5 × W 11.0 × H 3.0 mm



Cable outlet: right

	MTM-901 -1	MTM-901 -2	MTM-901 -3	MTM-901 -4	MTM-901 -5
Operating temperature	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C
Bon off	17/10 Gs	35/22 Gs	5/4 Gs	17/17 Gs	5/5 Gs
Cable	UL1569	UL1569	UL1569	UL1569	UL1569
AWG	24	24	24	24	24
Supply voltage	1.8 V … 5.5 V	1.8 V … 5.5 V	1.8 V … 5.5 V	1.8 V … 5.5 V	1.8 V … 5.5 V
Hall Type	Omnipolar / Switch	Omnipolar / Switch	Omnipolar / Switch	Bipolar / Switch	Bipolar / Switch
Housing material	PBTGF	PBTGF	PBTGF	PBTGF	PBTGF
Small quantities & samples	To the shop	To the shop	To the shop	To the shop	To the shop

	MTM-901 -1	MTM-901 -2	MTM-901 -3	MTM-901 -4	MTM-901 -5
Operating temperature	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C	–20 °C … +105 °C
Bon off	17/10 Gs	35/22 Gs	5/4 Gs	17/17 Gs	5/5 Gs
Cable	UL1569	UL1569	UL1569	UL1569	UL1569
AWG	24	24	24	24	24
Supply voltage	1.8 V … 5.5 V	1.8 V … 5.5 V	1.8 V … 5.5 V	1.8 V … 5.5 V	1.8 V … 5.5 V
Hall Type	Omnipolar / Switch	Omnipolar / Switch	Omnipolar / Switch	Bipolar / Switch	Bipolar / Switch
Housing material	PBTGF	PBTGF	PBTGF	PBTGF	PBTGF
Small quantities & samples	To the shop	To the shop	To the shop	To the shop	To the shop
