Series MMA-117
Compact Sensor Magnet for Precise Applications
The flat-housing sensor magnet MMA‑117 is robust and durable, making it suitable for use in industry, electronics, and automation. Thanks to its compact design and durable PA66GF housing, it can be easily integrated into existing systems and flexibly attached via screw or adhesive mounting.
Do you require a customized solution?
Individual adaptations:
• Housing shape
• Magnet strength
• Material
• Housing shape
• Magnet strength
• Material
Areas of application
Position control, speed measurement, level measurement
Features
Actuating magnet
Neodymium or Ferrite
Customized adjustments possible
Series characteristics
Series product information
A neodymium or ferrite-based activation magnet. The housing design allows for screw or adhesive mounting. Available with various magnetic strengths and temperature resistances.
Operating temperature: –20°C … +105°C
Housing material: PA66GF
Magnet: NdFeB N35H / Ferrite Y35
Approval
REACH; RoHS

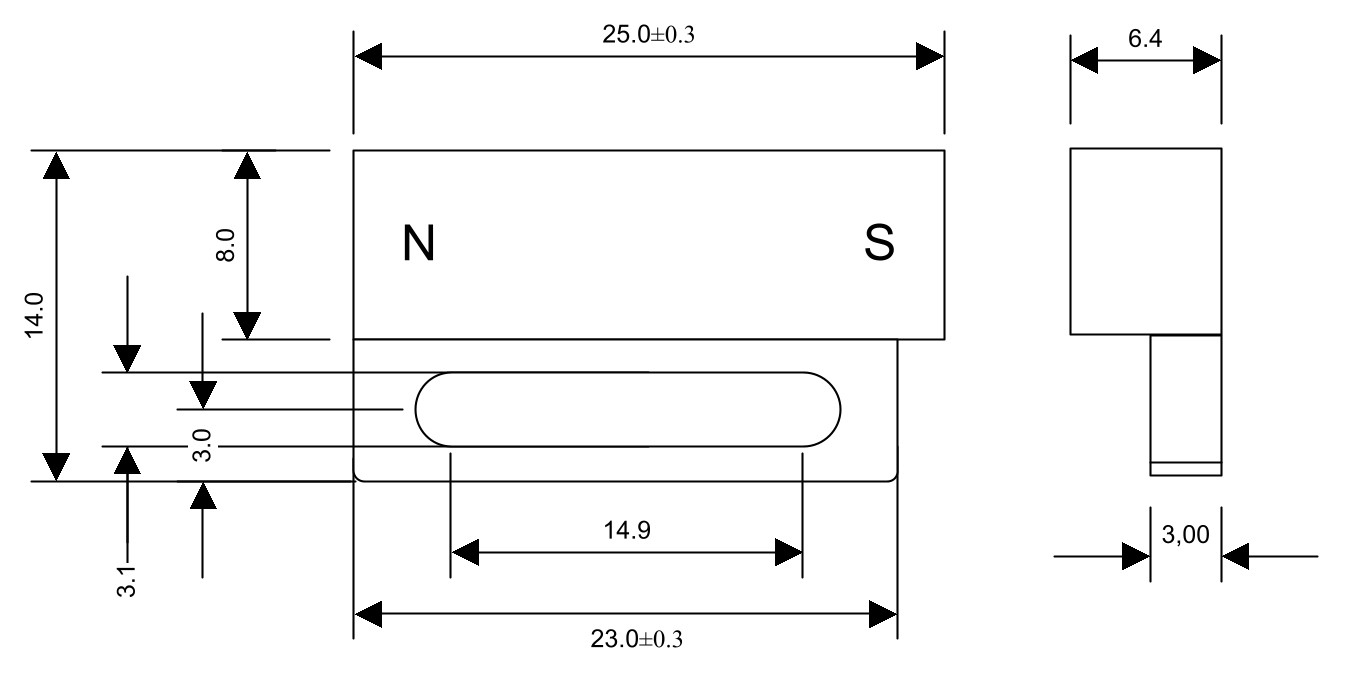

Technical drawing
Variant characteristics
| MMA‑117 -1 | MMA‑117 -2 | |||
|---|---|---|---|---|
| Dimensions | L 25 × W 14 × H 6.4 mm | L 25 × W 14 × H 6.4 mm | ||
| Temperature range | –20°C … +105°C | –20°C … +105°C | ||
| Material | PA66GF | PA66GF | ||
| Magnet type | NdFeB N35H | Ferrite Y35 | ||
| Mounting | Screw or adhesive mounting | Screw or adhesive mounting | ||
| Small quantities & samples | Please inquire directly | |||
| Property | MMA‑117 -1 | MMA‑117 -2 | – | – |
|---|---|---|---|---|
| Dimensions | L 25 × W 14 × H 6.4 mm | L 25 × W 14 × H 6.4 mm | ||
| Temperature range | –20°C … +105°C | –20°C … +105°C | ||
| Material | PA66GF | PA66GF | ||
| Magnet type | NdFeB N35H | Ferrite Y35 | ||
| Mounting | Screw or adhesive mounting | Screw or adhesive mounting | ||
| Small quantities & samples | Please inquire directly | |||
