Series MMA-309
Robust Sensor Magnets in Threaded Housing
The sensor magnets of the MMA-309 series are robust and durable. They are specifically designed for screw mounting and provide reliable magnetic force even under demanding conditions. The PA66GF housing ensures high stability, resistance, and easy integration into industrial applications.
Do you need a customized solution?
Individual customizations:
• Housing design
• Magnetic strength
• Material
• Housing design
• Magnetic strength
• Material
Application Areas
Position Control, Contactless Switching
Features
Actuating Magnet
Neodymium or Ferrite
Customer-specific customizations possible
Series Characteristics
Product Information for the Series
A neodymium or ferrite-based actuating magnet. The housing design enables screw mounting. Available with different magnetic strengths and temperature resistances.
Operating Temperature: –20°C … +105°C
Housing Material: PA66GF
Magnet: NdFeB N35H / Ferrite Y35
Certification
REACH; RoHS

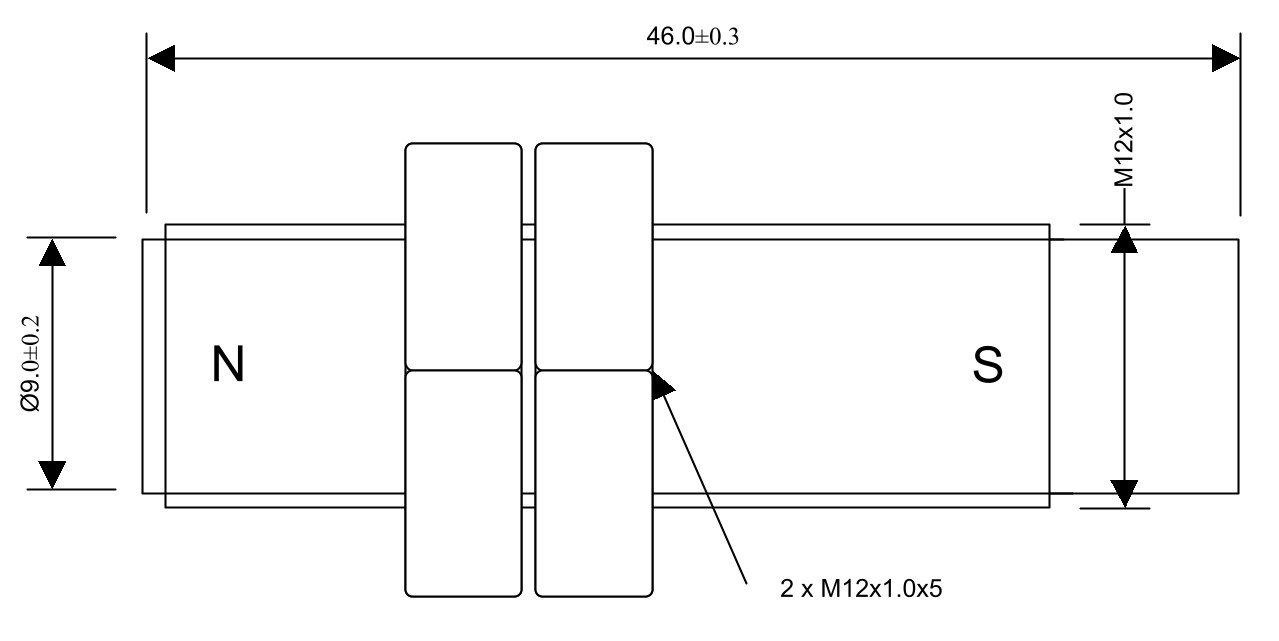

Technical Drawing
Variant Characteristics
| MMA-309 -1 | MMA-309 -2 | |||
|---|---|---|---|---|
| Dimensions | M12 × L 46.0 mm | M12 × L 46.0 mm | ||
| Pitch | 1.0 mm | 1.0 mm | ||
| Temperature Range | –20°C … +105°C | –20°C … +105°C | ||
| Material | PA66GF | PA66GF | ||
| Magnet Type | NdFeB N35H | Ferrite Y35 | ||
| Mounting | Screw mounting | Screw mounting | ||
| Small Quantities & Samples | Please inquire directly | |||
| Characteristic | MMA-309 -1 | MMA-309 -2 | – | – |
|---|---|---|---|---|
| Dimensions | M12 × L 46.0 mm | M12 × L 46.0 mm | ||
| Pitch | 1.0 mm | 1.0 mm | ||
| Temperature Range | –20°C … +105°C | –20°C … +105°C | ||
| Material | PA66GF | PA66GF | ||
| Magnet Type | NdFeB N35H | Ferrite Y35 | ||
| Mounting | Screw mounting | Screw mounting | ||
| Small Quantities & Samples | Please inquire directly | |||
◀ Please scroll table sideways ▶
