MMA-307 Series
Robust sensor magnets in threaded housing
The MMA-307 series sensor magnets are robust, durable, and specifically designed for screw mounting. They provide reliable magnetic force for industry, electronics, and automation and are available with either a neodymium or ferrite core. The nickel-plated brass housing ensures stability, corrosion protection, and easy integration into a wide variety of systems.
Do you require a customized solution?
Individual customizations:
• Housing shape
• Magnetic strength
• Material
• Housing shape
• Magnetic strength
• Material
Applications
Position control, non-contact switching
Features
Actuating magnet
Neodymium or ferrite
Customizations available
Series properties
Series product information
A neodymium or ferrite-based actuating magnet. The housing design allows for screw mounting. Available with different magnetic strengths and temperature resistances.
Operating temperature: –20°C … +105°C
Housing material: Nickel-plated brass
Magnet: NdFeB N35H / Ferrite Y35
Certification
REACH; RoHS

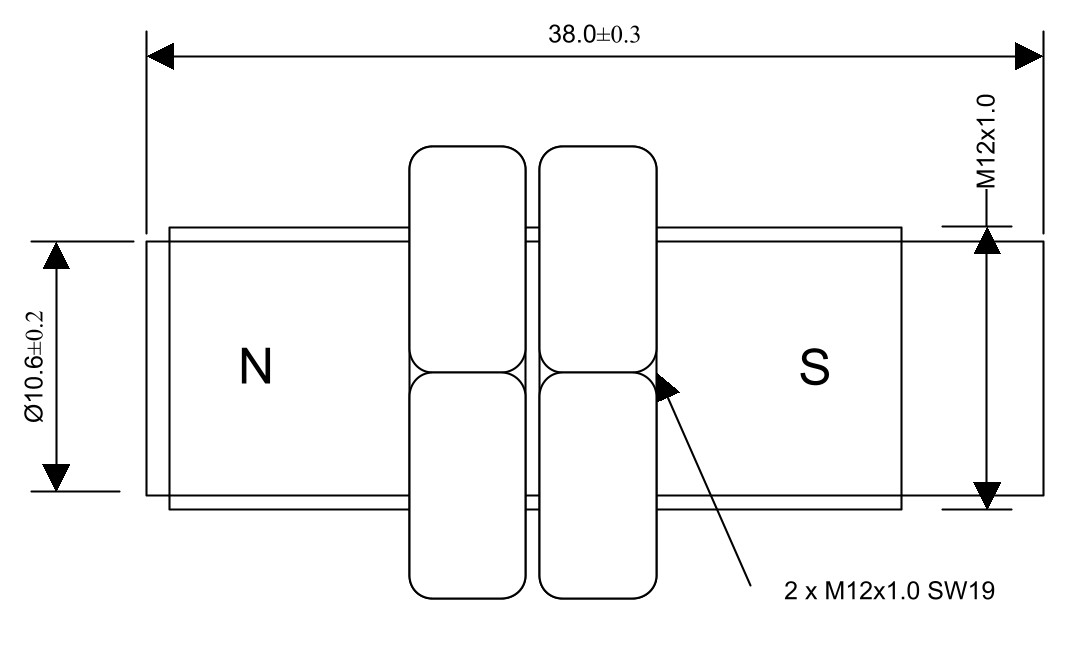

Technical drawing
Variant properties
| MMA‑307 -1 | MMA‑307 -2 | |
|---|---|---|
| Dimensions | M12 × L 38.0 mm | M12 × L 38.0 mm |
| Pitch | 1.0 mm | 1.0 mm |
| Temperature range | –20°C … +105°C | –20°C … +105°C |
| Material | Nickel-plated brass | Nickel-plated brass |
| Magnet type | NdFeB N35H | Ferrite Y35 |
| Mounting | Screw mounting | Screw mounting |
| Small quantities & samples |
 To the shop
|
To the shop
|
| Property | MMA‑307 -1 | MMA‑307 -2 | – | – |
|---|---|---|---|---|
| Dimensions | M12 × L 38.0 mm | M12 × L 38.0 mm | ||
| Pitch | 1.0 mm | 1.0 mm | ||
| Temperature range | –20°C … +105°C | –20°C … +105°C | ||
| Material | Nickel-plated brass | Nickel-plated brass | ||
| Magnet type | NdFeB N35H | Ferrite Y35 | ||
| Mounting | Screw mounting | Screw mounting | ||
| Small quantities & samples |
To the shop
|
To the shop
|
◀ Please scroll the table sideways ▶
